Stonex R60 Manual Total Station | 1"

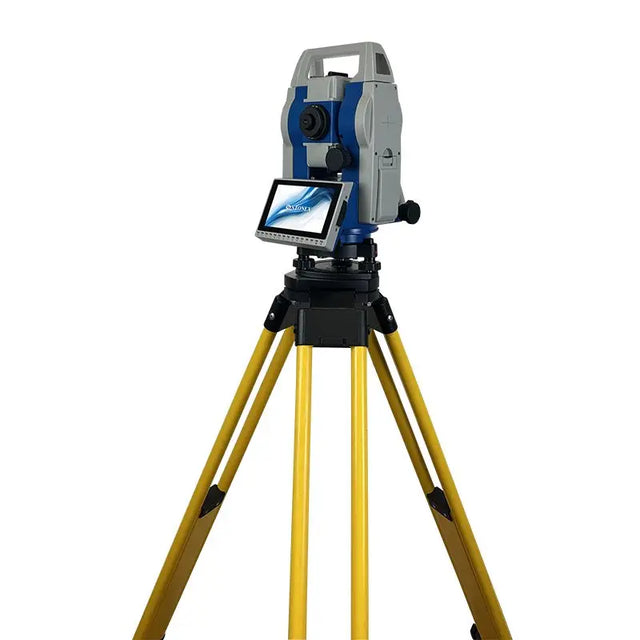

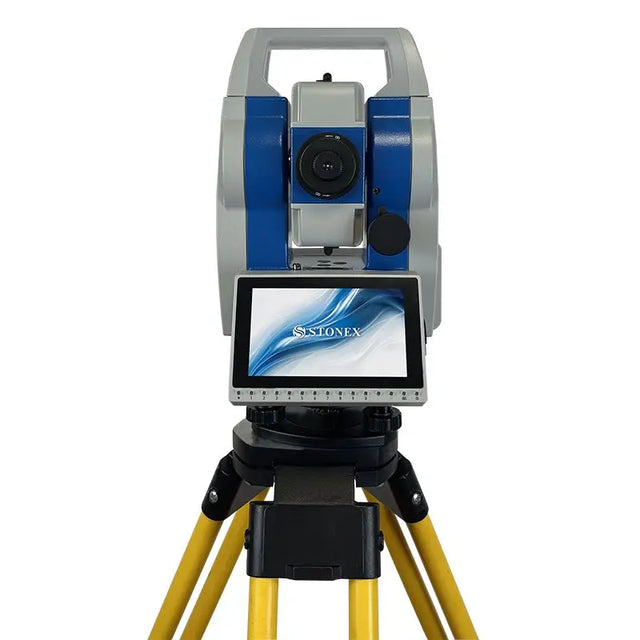

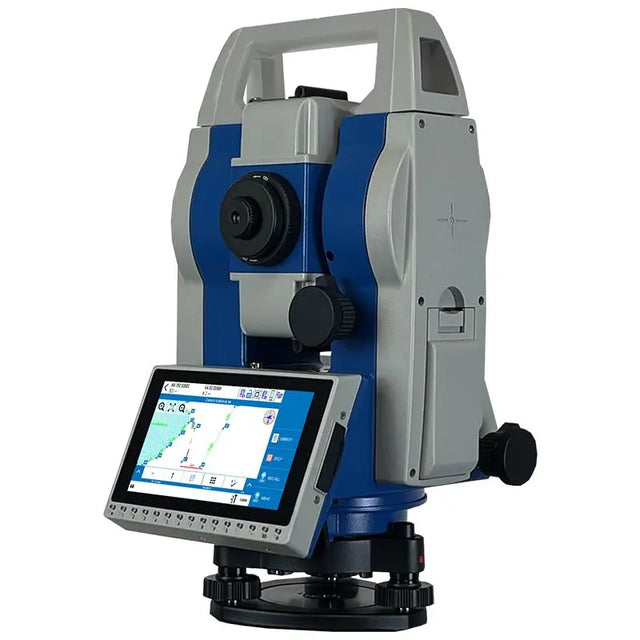

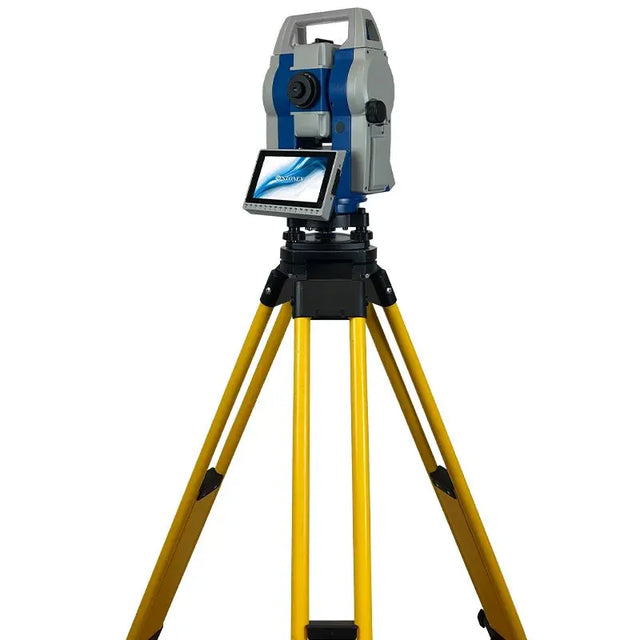

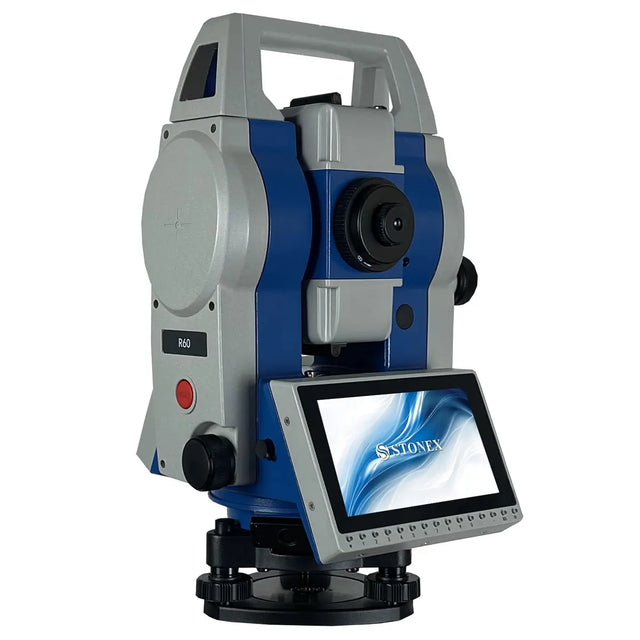

Stonex R60 Android Manual Total Station

The R60 was the first Stonex total station to bring Android directly onboard, and it remains a benchmark for what a modern manual total station should be. Its 5.5" color touchscreen running Android 11 gives operators a familiar, smartphone-like experience with full access to Cube-a software, background maps, web browsing, and seamless GNSS integration without the need for external controllers or cables. Available in a 1" lock-drive version for maximum precision or a 2" endless-drive version for smooth, uninterrupted rotation, both models achieve distance accuracy of 2mm + 2ppm with a prism range up to 5,000m and 1,000m reflectorless. A standout innovation is the dedicated GNSS connector on the handle, allowing a receiver to be mounted directly on the vertical axis of the instrument for true mixed-survey workflows. Charging via USB Type-C and Bluetooth data exchange make the R60 as convenient on the bench as it is powerful in the field.

Specifications:

• Angular Accuracy: 1" (lock drives) or 2" (endless drives)
• Distance Accuracy: 2mm + 2ppm (prism) / 3mm + 2ppm (reflectorless)
• Prism Range: Up to 5,000m
• Reflectorless Range: Up to 1,000m
• Operating System: Android 11 with Cube-a onboard
• Display: 5.5" color touch, 720 x 1080 px
• Connectivity: Bluetooth, Wi-Fi, USB Type-C, RS232
• GNSS Connector: Integrated on handle for mixed surveys
• Waterproof Rating: IP55
• Operating Temperature: -20°C to +50°C
