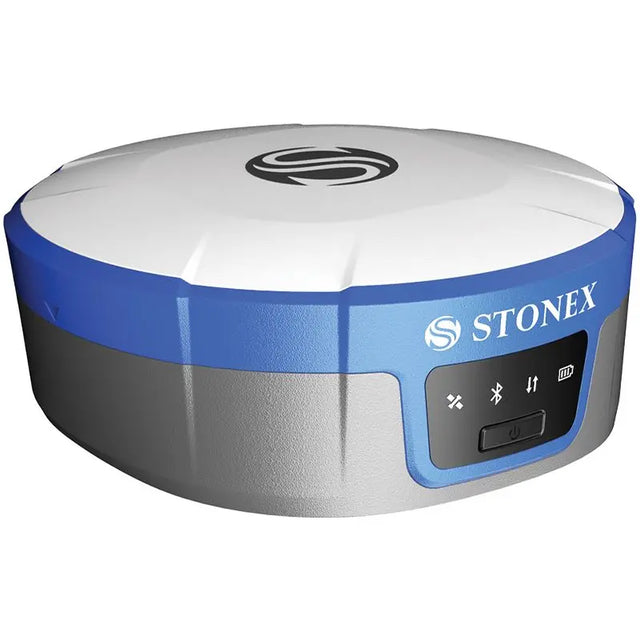

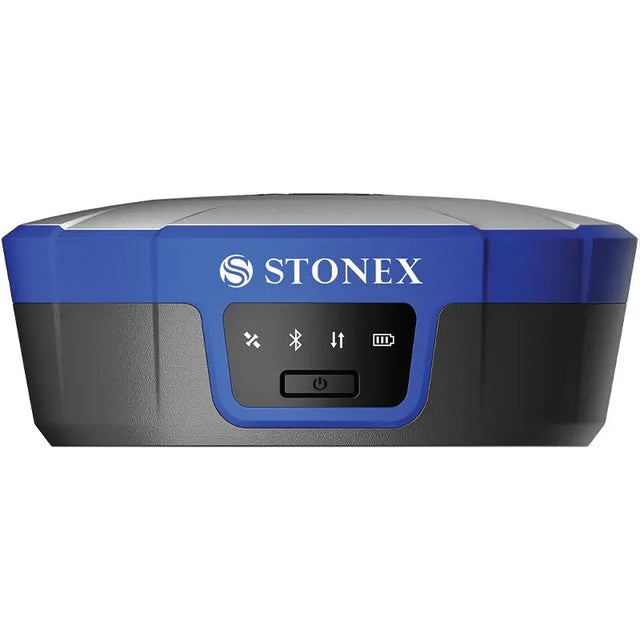

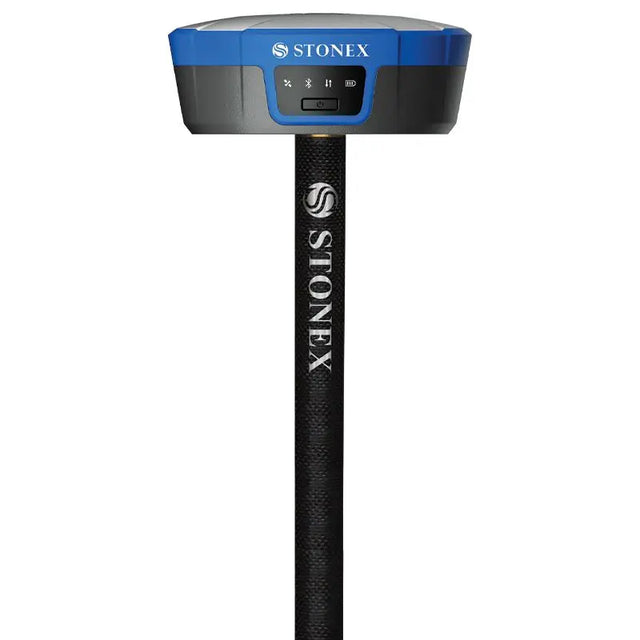

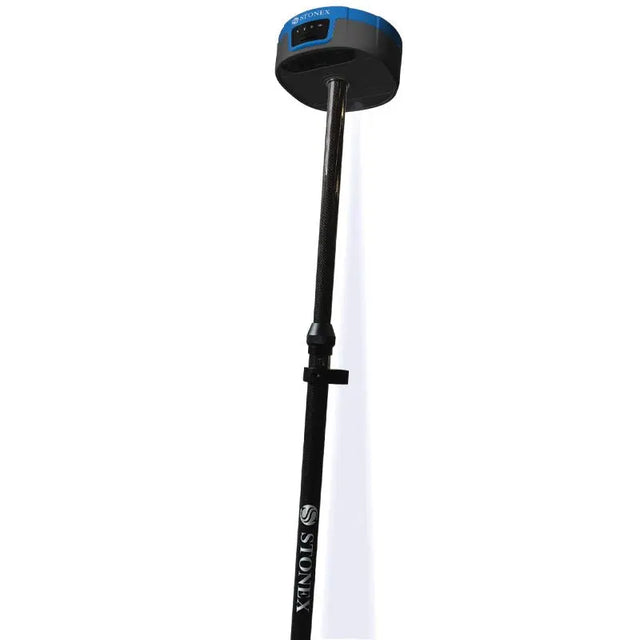

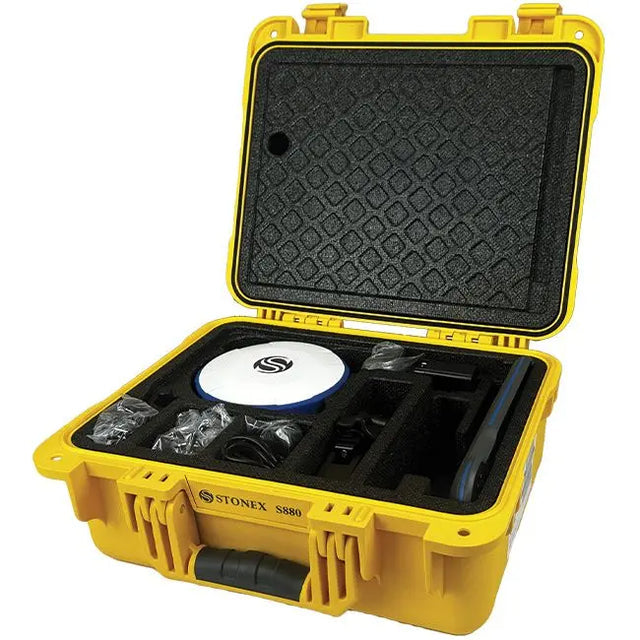

Stonex S880 GNSS Receiver

Stonex S880 GNSS Receiver

The S880 is a compact, feature-rich GNSS receiver that packs serious capability into a lightweight 730-gram body, making it the ideal choice for crews who need a portable, all-day rover without sacrificing performance. Tracking all major satellite constellations across 1408 channels at 20Hz, it delivers consistent RTK accuracy with 8mm + 1ppm horizontal precision. Its integrated AR stakeout camera provides real-time visual guidance through Cube-a software, overlaying navigation graphics onto the live scene so surveyors can navigate directly to stakeout points with confidence and speed. An advanced IMU tilt sensor handles pole inclinations up to 60°, eliminating manual leveling and accelerating point collection in tight or obstructed areas. The high-powered 2W UHF radio ensures strong, reliable base-rover communication over long distances, while an integrated 4G modem keeps network RTK corrections flowing wherever cellular coverage exists. With IP68 protection, 1.5-meter drop resistance, and 10-plus hours of battery life, the S880 is built to keep working no matter what the job site throws at it.

Specifications:

• Satellite Channels: 1408, all constellations including GPS, GLONASS, BeiDou, Galileo, QZSS, IRNSS
• Position Rate: 20Hz
• RTK Accuracy: 8mm + 1ppm (H) / 15mm + 1ppm (V)
• IMU Tilt Compensation: Up to 60°
• Camera: Integrated AR stakeout camera
• UHF Radio: 2W
• Connectivity: 4G modem, Bluetooth, Wi-Fi
• Data Storage: 8 GB
• Waterproof Rating: IP68, 1.5m drop resistant
• Operating Temperature: -40°C to +65°C
• Weight: 730g
