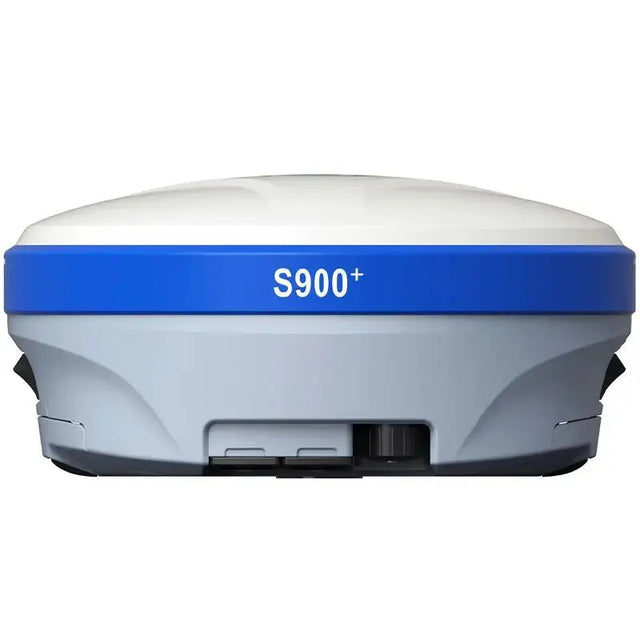

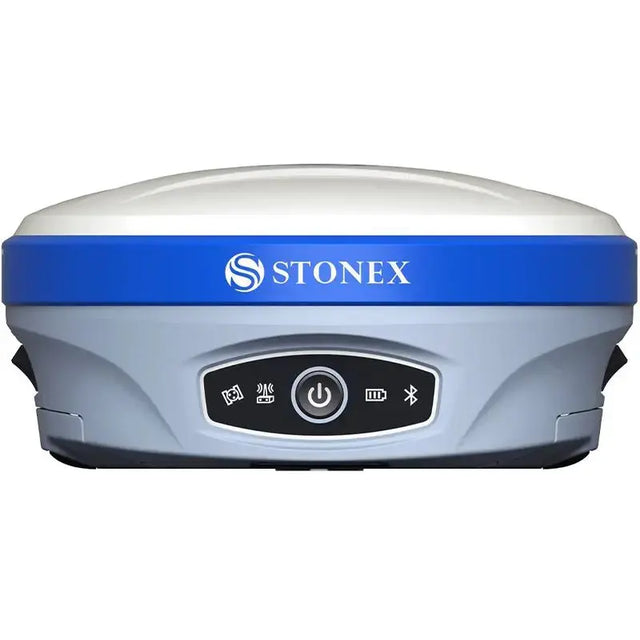

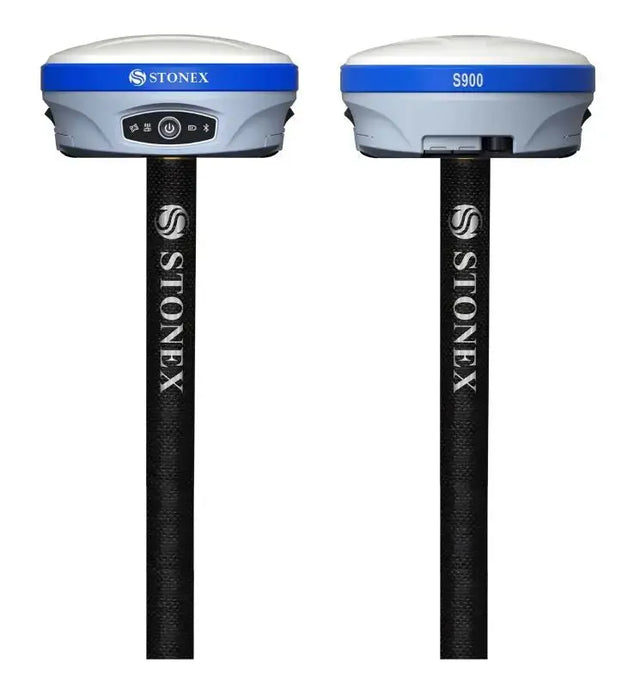

Stonex S900+ GNSS Receiver

Stonex S900+ GNSS Receiver

The S900+ is a compact, high-performance GNSS receiver that delivers exceptional versatility for both base and rover configurations in one sleek, modern package. Powered by a 1408-channel board tracking GPS, GLONASS, BeiDou, Galileo, QZSS, SBAS, and IRNSS, it provides precise, reliable positioning across all environments at no extra cost. Its standout feature is a dual smart hot-swappable battery system, allowing up to 12 hours of uninterrupted fieldwork and the ability to swap batteries without ever powering down, making it the go-to choice for crews tackling long survey days. IMU tilt compensation up to 60° with fast initialization speeds up point collection by up to 40%, while the integrated UHF TX/RX radio makes it the perfect base-rover system without additional hardware. A compact and modern design, combined with Bluetooth, Wi-Fi, and 4G GSM, ensures seamless data flow to any controller in the field. Pair it with Cube-a software and the S900+ becomes a truly complete and powerful survey solution.

Specifications:

• Satellite Channels: 1408, including GPS, GLONASS, BeiDou, Galileo, QZSS, SBAS, IRNSS
• Position Rate: Up to 20Hz
• RTK Accuracy: 5mm + 0.5ppm (H) / 10mm + 0.5ppm (V)
• Static Accuracy: 2.5mm + 0.1ppm (H) / 3.5mm + 0.4ppm (V)

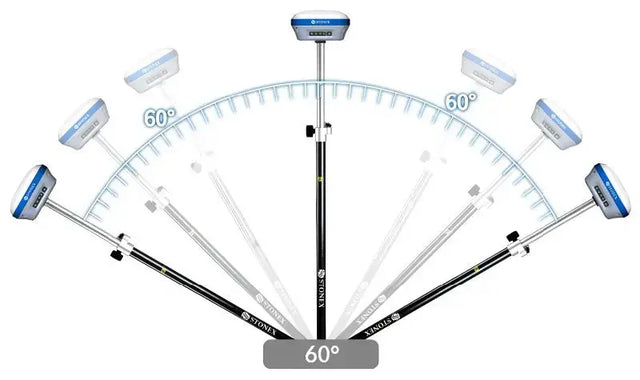

• IMU Tilt Compensation: Up to 60°
• UHF Radio: 1W integrated TX/RX
• Connectivity: 4G GSM, Bluetooth, Wi-Fi
• Data Storage: 8 GB (expandable to 32 GB)

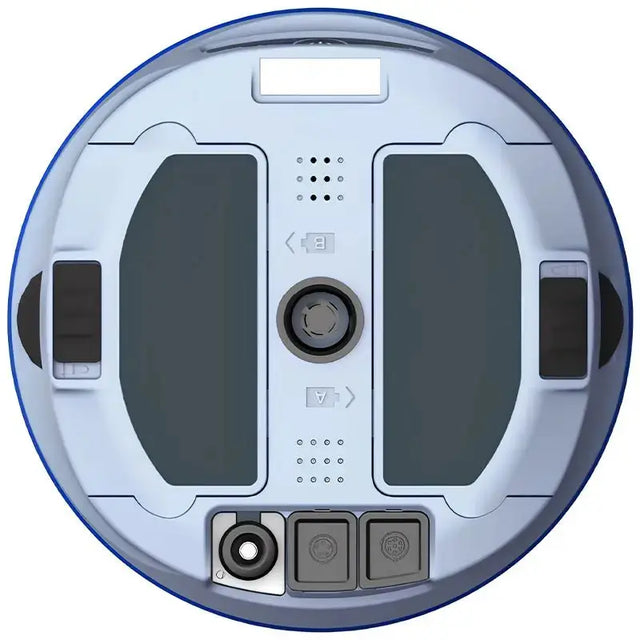

• Battery: Dual hot-swappable, up to 12 hours total
• Waterproof Rating: IP67
• Operating Temperature: -40°C to +65°C
