STT402L Plus 2" Electronic Theodolite | Bundle

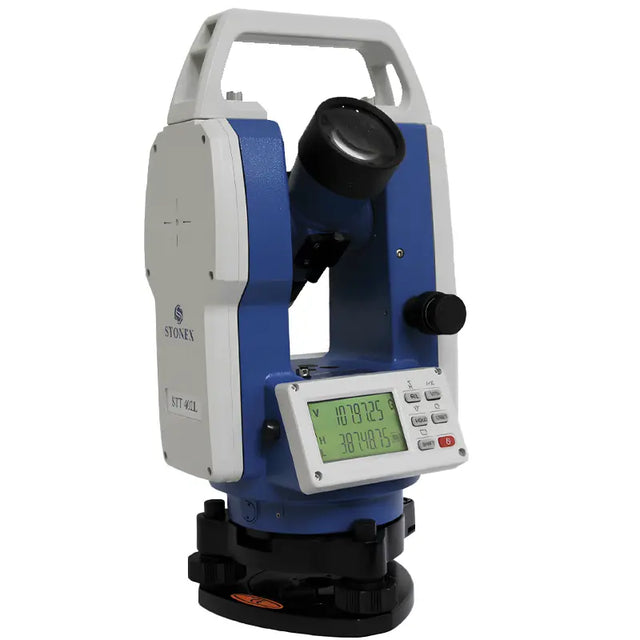

Stonex STT402L Electronic Theodolite

Precise, efficient, and straightforward to operate, the STT402L is a professional-grade electronic theodolite built for surveyors who need reliable angle measurement in any environment. Featuring a powerful 30x magnifying telescope with a wide 45mm objective aperture and 1°30' field of view, it delivers sharp, clear sighting even at distance. An absolute encoder reading system with 2" angular accuracy and 1" minimum reading ensures data you can trust on every observation. The dual-axis electronic compensator automatically corrects for tilt within a ±3' range, while the backlit dual-sided LCD keeps readings visible in all lighting conditions. With an illuminated reticle, laser plummet, RS-232 interface, and up to 80 hours of operation on a Li-Ion battery, the STT402L is fully equipped for a full day and beyond on the job site.

Specifications:

• Angular Accuracy: 2"
• Minimum Reading: 1" (0.2 Mgon)
• Telescope Magnification: 30x / 1°30' field of view
• Objective Aperture: 45mm
• Compensator: Electronic dual-axis, range ±3', accuracy 1"
• Laser Plummet: Class 2, 635nm, accuracy 1mm @ 1.5m
• Waterproof Rating: IP55
• Operating Temperature: -20°C to 50°C
• Weight: 4.5 kg
