Stonex R120 Robotic Total Station | 1"

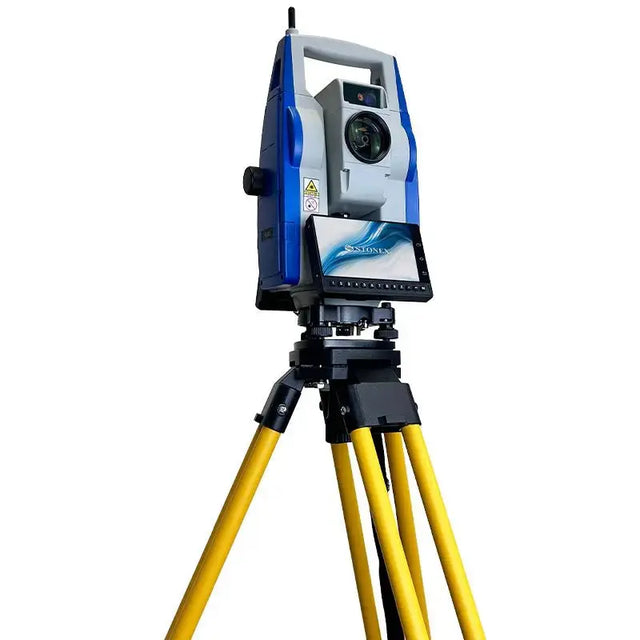

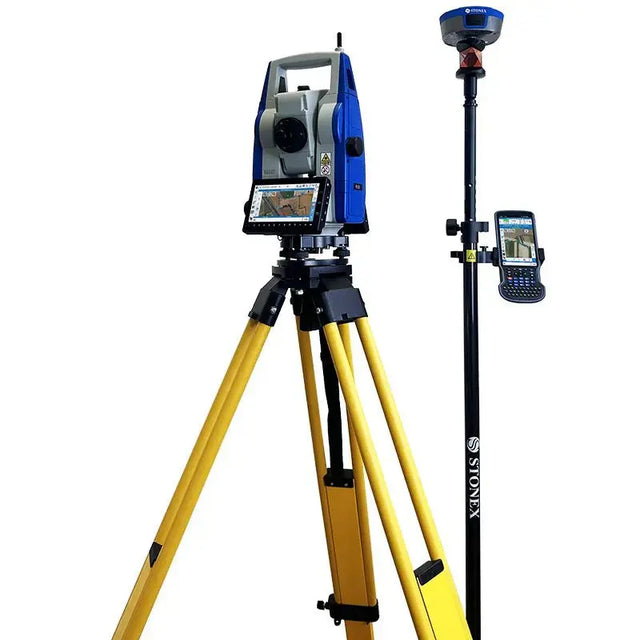

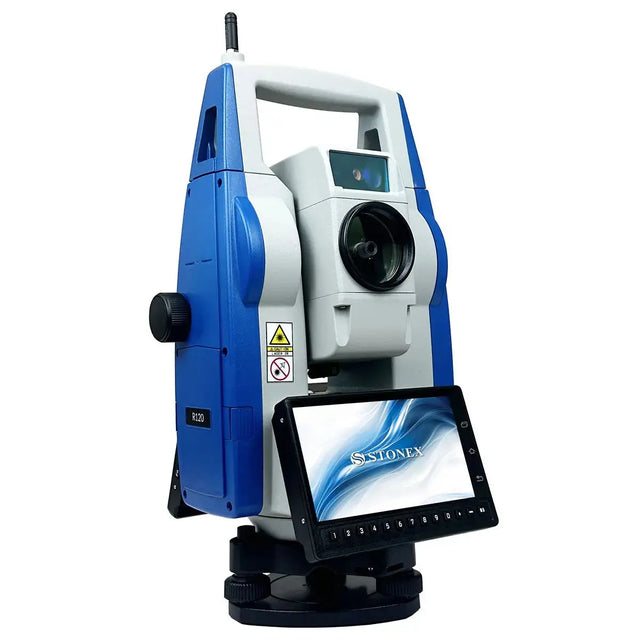

Stonex R120 Robotic Android Total Station

The R120 brings the power of a fully robotic total station together with the simplicity of an Android smartphone, delivering exceptional precision and one-person survey capability at an outstanding value. Available in 1" and 2" angular accuracy versions, it achieves EDM accuracy of 1mm + 1ppm with a prism range up to 3,500m and reflectorless operation up to 1,000m. Its DC servo motor delivers a rotation speed of 60° per second with Face 1 to Face 2 switching in just 2.9 seconds, while Automatic Prism Centering (APC) technology locks onto and reacquires the prism automatically up to 1,000m away, making one-person robotic surveying effortless. Running Android 11 with Cube-a pre-installed on a 5.5" color touch display, it seamlessly merges total station and GNSS workflows in a single familiar interface. With integrated 4G LTE modem, Bluetooth up to 300m, Wi-Fi, and 4GB RAM with 64GB storage, the R120 is as connected and capable as it is precise.

Specifications:

• Angular Accuracy: 1" or 2" (model dependent)
• EDM Accuracy: 1mm + 1ppm
• Prism Range: Up to 3,500m
• Reflectorless Range: Up to 1,000m (800m for 2" version)
• Rotation Speed: 60°/sec, Face 1 to Face 2 in 2.9 seconds
• Operating System: Android 11 with Cube-a onboard
• Display: 5.5" TFT color touch, 720 x 1280 px
• Memory: 4GB RAM / 64GB storage
• Connectivity: Bluetooth (300m), 4G LTE, Wi-Fi
• Waterproof Rating: IP55
• Operating Temperature: -20°C to +50°C
• Weight: 7 kg with battery and tribrach
