Product Description

Spectra DG613G Green Beam Dialgrade Pipe Laser
  • Compact and Powerful
  • Grade Range -12% to +40%
  • Self-Leveling over the entire grade range
  • Full cross axis compensation
  • RC803 Remote works via Radio and Infrared

Spectra DG613G Pipe Laser Overview
Designed to fit around tighter inverts, the Spectra Precision DG613G delivers the most productive pipe laying experience in the market. They are extremely rugged and thrive in demanding underground conditions. Benefiting from the latest technology developed by Spectra Precision, the beams move quickly and accurately for alignment and grade. Spectra's DG613G helps you improve efficiency and provide unprecedented performance and reliability. Working in the trenches just got easier with the new range of pipe lasers from Spectra Precision.

 Spectra Precision DG613G Pipe Laser Includes
  • Green Beam Pipe Laser DG613
  • Trivet Pipe Centering Plate (8-inch) 1248
  • Infrared Radio Remote Control RC803 with hand loop
  • Target 956 with two target plates
  • NiMH rechargeable battery pack Q104667 (blue)
  • Smart Charger
  • Carrying Case
  • Operating Manuel
  • 5-Year Warranty
 Spectra Precision DG613G FEATURES and BENEFITS
  • New reduced length allows easy set-up even in tight inverts
  • Self leveling range of -12% to +40% over the entire grade range
  • Cross axis compensation provides a quicker more accurate set-up as the laser does not have to be level in the pipe – place it in the pipe it levels, you work.
  • Bright visible beam that works up to 150m (500 feet)
  • RC803 remote works via radio 130m (430 feet) or infra-red 150m (500 feet) for both “over-the-top” set-up and in pipe/trench set-up.
  • Large, bright, graphical user interface makes the screen easier to see and use when in or out of the pipe. Same graphical user interface can be seen on the remote – what you see on the laser you see on the remote.
  • The Spectra Precision DG613 has advanced functions that make setting up and using it easier and more accurate:
    • Line-Set/Check – allows the user to align the laser to the manhole quickly and easily to set direction. The beam will go up to 100% allowing easy alignment even in short trenches
    • Line Scan – provides a quick alignment to the center of the target for the second day setup
    • Line Alert- notifies the user if the set-up is disturbed eliminating costly re-work from errors
 Spectra Precision DG613G APPLICATIONS
  • Installation of gravity flow sanitary pipelines
  • Storm sewer pipelines
  • Pipe jacking
  • Can be used in a pipe or in “Over the Top” set-ups

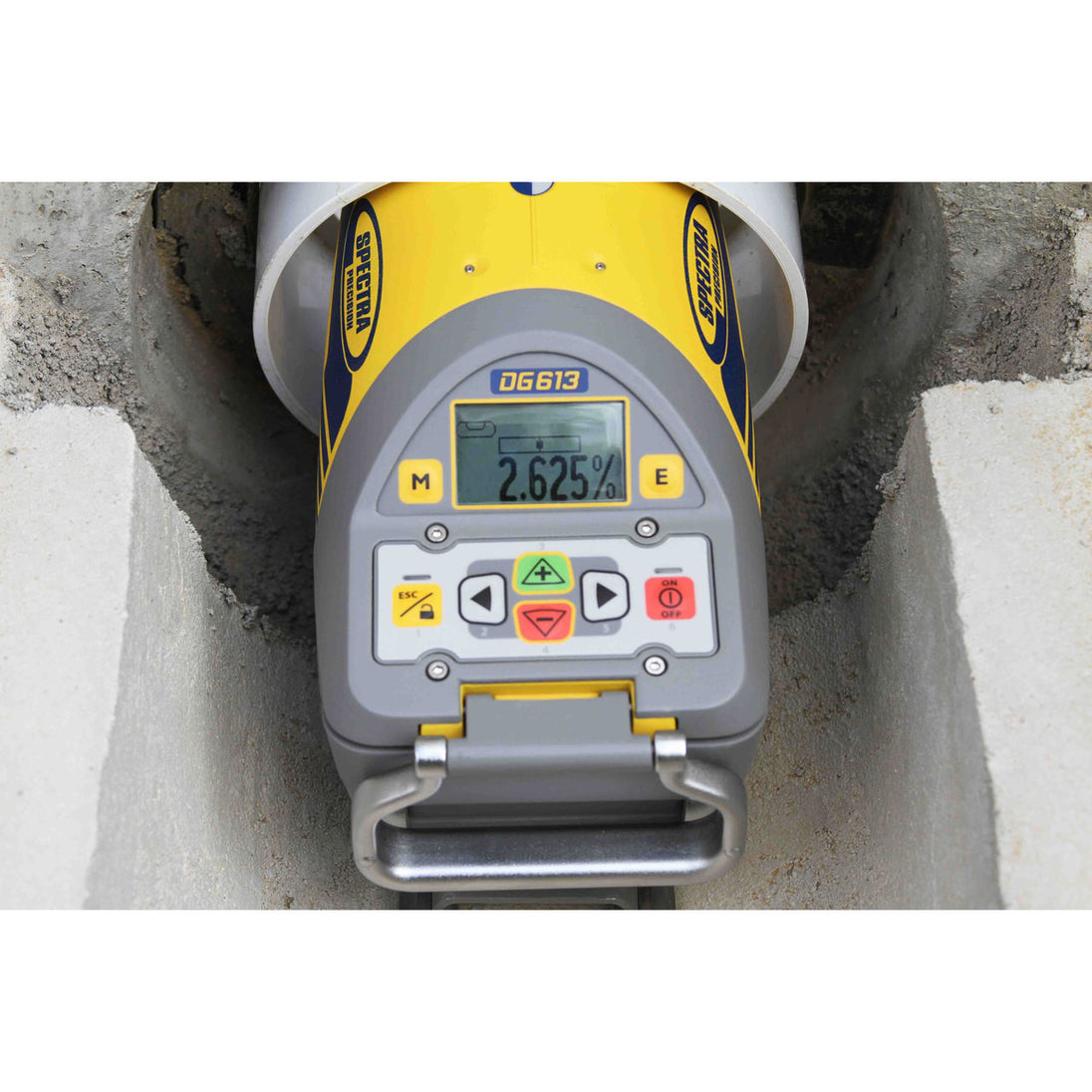

The Spectra DG613 features the largest automatic leveling range in the industry providing quick, easy setups, regardless of grade. Unlike traditional pipe lasers, they eliminate the need for rough leveling and minimize crew training. Simply set up the laser in the pipe, manhole or open cut without the need to swivel or rough level the unit.
This unique feature is ideal for working in high-vibration or wet conditions where the pipe lasers may be disturbed. The beam flashes to notify you that the setup line has been disturbed, eliminating the necessity of rework. Combined with the self-leveling warning, you’ll always complete the job correctly, on time and on budget!
The Line Set/Check capability of both pipe lasers allows you to raise the beam up to 100% outside of the trench for fast line setup or checking. Raising the laser beam out of the trench to an above-ground stake saves you time—instead of having to move the excavator off line during setup of the pipe laser, you can just get on with your job. In addition, the Line Set-Check feature is ideal for rechecking the line for pipe jacking after each push.

Our patented Target Lens collects the beam and transfers the spot up to the pipe layer’s angle of view, making it very easy to see the laser beam (inclusive in the standard package).
- Shorter Length
- Grade Range -12% to +40%
Self Leveling over the entire grade range and full cross axis compensation
Ultra-Fast beam movement
- Operating Range up to 500-foot with radio / IR remote control
- BIG and Intuitive Graphic Display at the Laser and Remote Control
- IP68 protection (dust and waterproof)
- Flexible power options (NiMH / Alkaline) Includes Rechargeable Batteries but can use Alkaline batteries as back-up.
- Advanced Functions squeezing work time: LINE SET/CHECK (first day set-up), LINE SCAN (second day set-up) and LINE ALERT

  • Accuracy, Self-Leveling (level) 1,3
    • ± 1.5 mm/30 m, (1/16 in @ 100 ft) 10 arc seconds
  • Operating Range 1,2
    • up to 500 feet (150 m)
  • Laser Type red diode laser 600 - 680 nm
  • Laser class Class 3A/3R, <5mW OR Class 2
  • Self-leveling range
    • Longitudinal Over the entire grade range with automatic cross axis compensation (no rough leveling required)
  • Grade range -12% to +40%
  • Line Range 20° ±1°
  • Leveling indicators LCD indications; beam and LED flash
  • Power source 10000mAh NiMH battery pack
  • Battery life 1
    • 40 hours NiMH
    • 50 hours alkaline
  • Temperature compensation Yes
  • Length 9.8-inches (25 cm)
  • Diameter 5.3-inches (13,5 cm)
  • Operating Temperature  -4°F to 122°F (-20°C to 50°C)
  • Storage temperature -4°F to 158°F  (-20°C to 70°C)
  • Tripod attachments 5/8 x 11 horizontally
  • Dust and Water proof IP68
  • Weight 6.61-lbs(3,98 kg)
  • Low voltage indication LCD battery indicator
  • Low voltage disconnection unit shuts off
 Included Remote Control Spectra RC803 TECHNICAL SPECIFICATIONS
  • Radio operating range (Over the Top):1,3
    • up to 425 foot (130 m)
  • IR operating range (front) 1,4
    • up to 500 foot (150 m)
  • Power source 2 x 1.5V AA alkaline batteries
  • Battery life 1 130 hours
  • Dust and Water proof IP66
  • Weight (incl. batteries) 0.57 lbs (0.26 kg)
Spectra Precision DG511 vs DG613 FEATURE ADVANTAGES
  DG511 DG613 DG613G
         Shorter DG613 housing fits better into curved pre-fabricated inverts
Beam Color RED RED GREEN DG613G Bright Visible Green Beam
Accuracy (level)  1.5 mm at 30 m 1.5 mm at 30 m
Grade Range -15% to +40% -12% to +40%   DG613 beam can be moved up to 100% for first day setup
Self-Leveling Range Longitudinal: Over the
entire grade range
(no rough leveling required);+/-3°:
Cross Axis compensation
Longitudinal: Over the
entire grade range

(no rough leveling required)
Cross axis is fully compensated
  Easier and quicker setup because no cross axis adjustment required at the DG613
Alkaline/Recharge D-cell  NiMH (64 hrs)
D-cell Alkaline (40 hrs)
D-cell  NiMH (40 hrs)
D-cell Alkaline (50 hrs)
Remote Control RC501: 3 button IR remote RC803: 8 button Radio/IR remote
Menu/Graphic Display Hidden menu Easy access, easy to understand   available in 14 languages
Line Set/Check
NO YES   Faster Set-UP
Line Scan NO YES   Better speed of adjustment on DG613
Remote Control
     RC603 has full featured remote control
